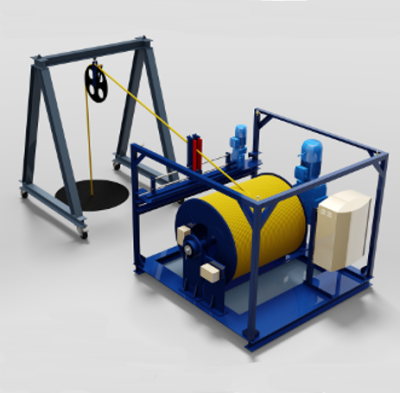

Compact Electrical Winches

All-in-one or Modular Electrical Reels & Winches for Land & Marine Applications such as launch and recovery of side scan sonar, CTD, small inspection crawler, inspection or light work ROV, ROTV, etc.

Category:

Description

Full range of electrical winches designs customisable to meet user requirements in terms of line pull, line speed and cable diameter for diverse applications such as:
  • Cable Storage
  • Survey sensor such as Side Scan Sonar, sub-bottom profiler
  • ROV System
  • ROTV
  • Towed / Deep Towed System
  • General Oceanographic applications such as CTD
Powered by single phase 230VAC or three phase 400/440VAC electrical motors with advance VVVF Controller. Low noise with wide range of speed control.
Completely dust and water proofed.
Constant Tension and Active Heave Compensation (AHC) options available.

Features

The following features are available depending on user requirements:

Frame-up or Open
All-in-one or Modular
Aluminium / Steel / Stainless Steel Construction
Forklift Pocket / Lifting Padeyes

Manual / Wired or Wireless Belly Box Control
Additional remote control station
Electronics Display
Emergency Stop
Pay out speed / length count
Load cell for line tension

Standard Auto Level Wind / Right Angle Level Wind

Changeable Winch Drum / Lebus Shell

Safe Area or Zone Rated

Hand crank / de-clutch option

Additional Information

DNV Certifications / CE Marking available upon request. All design suitable for installation of electrical / fibre optics slip ring.
