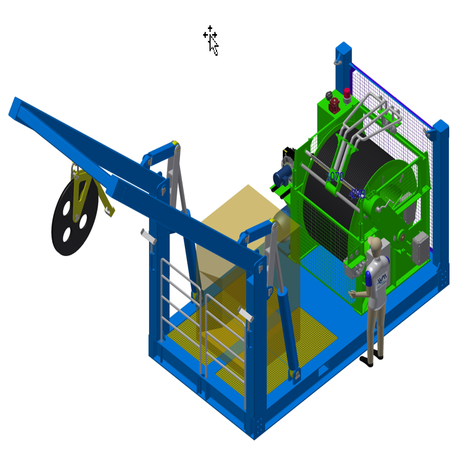

Compact LARS for ROV System

Compact LARS for ROV System

Model Rov Package Weight Umbilical Capacity
LS0.6 Up to 600kg Up to 1100mm @ 20mm OD
LS1.2 Up to 1200kg Up to 1100mm @ 20mm OD
LS2.0 Up to 2000kg Up to 1100mm @ 20mm OD
LS3.0 Up to 3000kg Up to 1100mm @ 20mm OD
LT0.6 Up to 600kg Up to 1100mm @ 20mm OD
LT1.2 Up to 1200kg Up to 1100mm @ 20mm OD
LT2.0 Up to 2000kg Up to 1100mm @ 20mm OD
LT3.0 Up to 3000kg Up to 1100mm @ 20mm OD

*LS models are Free Swimming Systems, LT models are TMS based systems

*Variations to the above specifications can be accommodated upon request

Category:

Description

All-in-one compact LARS design most suitable for inspection / light work ROV. Available as  free swimming or armour umbilical based systems. It can be configured with or without motion damper / snubber.

This LARS are meant for easy mobilisation with single lift. The  largest model of this series has the foot print of a 20FT container (2,438mm x 6,096mm). The smallest one has foot print 2,438mm x 4,500mm.  In transportation mode, the entire LARS folds into shape of a rectangular box with width and length suitable for transportation on 20FT Container Ship Flat Rack.

Constant tension and AHC option is available.

Feature

 – 3g Design Factor
– Compact all-in-one design
– 20FT container footprint
– Auto level wind can accommodate different sizes of umbilical cable

Additional Information

Zoning:                                                       Safe Area or Zone 2

Operating Temperature:                        0°C to +45°C or -20°C to +45°C

Certification:                                            Class Approved or DNV 2.7.1, DNV 2.22, 3rd Party Witnessed Load Test Certs

Other optional features include:

Remote Control:                                     Wired or Radio Remote Control Belly Box
HPU Oil Tank:                                            Painted Steel or SS316
Hydraulics Tubing:                                  Painted Steel Tube or SS316
Hydraulics Fitting:                                   Steel or SS316
HPU Cooling:                                            Water or Air Cooled Heat Exchanger

Umbilical Cable Drum:                          Flat or Grooved (Lebus)
