| Material | Aluminium T6061 Hard Anodized to MIL-A-8625F Type III Cass 2 | Overall Diameter | 75mm |
| Overall Length | 185mm (exclude connector) | Weight in Air | 1.5kg |
| Weight in Water | 1.45kg | Depth Rating | 3000msw |
| Operating ambient temperature | -2°C to +60°C | Measurement Range | 0 to -2500mV |
| Accuracy better than | 1mV | Power Supply | 24Vdc 0.2A |
| Communication | 3-wire RS232 | Supply Connection | Subconn MCBH5M |
| CP Probe Connection | SEA CON® RMG-3-BCL connector |

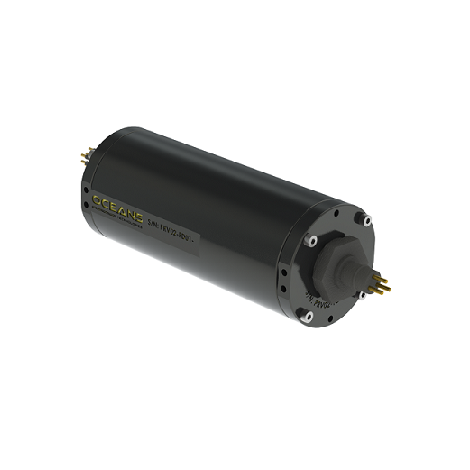

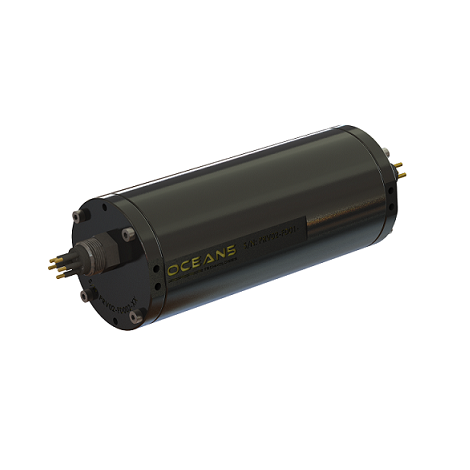

Ocean 5 CP System AD Converter Pod is a 3000m rated electronics pod used to convert analogue signals from the CP probe into digital signal to be sent upstream in RS232 data form.
Data received from surface is captured and displayed by a custom designed GUI software. The software also allows the user to record, log or send the data to other equipment.
