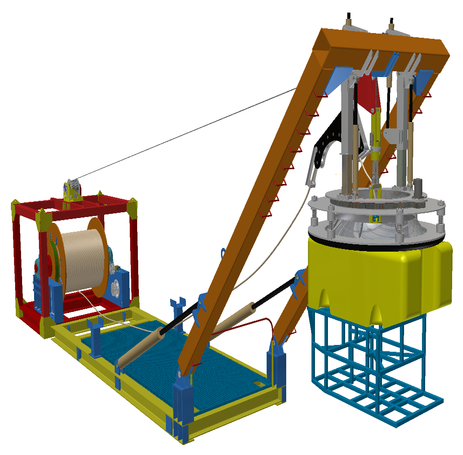

LARS for Free Swimming ROV Systems

LARS for Free Swimming ROV Systems

Winch Capacity 1,100m of 40mm OD Umbilical
A-frame SWL 5Te
Winch Line Pull 5Te @ innermost layer
Winch Line Speed
30m / min Average
Parking Brake Band Brake
Control Manual control pedestal or wired belly box or wireless belly box control
HPU 50HP

Category:

Description

Launch & recovery of free swimming Work Class ROV, can be configured with or without motion damper / snubber.  The snubber design is an industry-first proprietary motion damping system that reduce the hazard to human operator when launching and recovery of free swimming ROV in bad weather conditions.

Feature

  • 3D Motion Damper (FWD/AFT damping, up/down telescopic, turntable rotate)
  • Use with or without Active (Reverse) Docking Bullet
  • Light Weight and easy to mobilise
  • Low complexity design / easy to operate and maintain
  • Winch drum can accommodate slip ring from both ends
  • Free swimming motion damper can be supplied standalone for retrofitting on existing A-frame

Additional Information

Free swimming motion damper can be supplied standalone for retrofitting on existing A-frame.
