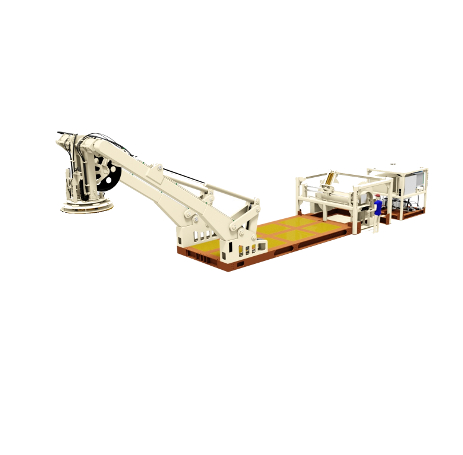

LT Series Armoured Umbilical LARS

Standard sizes LT Series LARS are as follows:

A-frame SWL 6Te 8Te 11Te
Winch Capacity 1200m of 37mm OD 1800m of 37mm OD 3600m of 37mm OD
HPU Rating 86KW 149KW 152KW

3Te to 13Te SWL variants can be easily accommodated.

Category:

Description

LT Series ROV Launch and Recovery System (LARS) are intended for launch and recovery of TMS/ROV/Skid package with armored umbilical cable. These LARS are designed for 3g load / Sea State 6 operating condition. Constant tension and Active Heave Compensation (AHC) options are available. Auto level wind can accommodate different sizes of umbilical cable

Feature

Double linkage A-frame enabling long out-board reach and low stowed A-frame height Sigle or daul electrical motors (100% redundancy) Hydraulics Power Unit (HPU) Inductive Sensor / PLC control level wind Main sheave with load pin / trans counter Fail-safe and efficient docking latch. Quick and simple release and engagement of ROV bullet Pneumatic/hydraulics based motion damper

Additional Information

Zoning:                                      Safe Area or Zone 2

Operating Temperature:       0°C to +45°C or -20°C to +45°C

Certification:                           Class Approved or DNV 2.7.1, DNV 2.22, 3rd Party Witnessed Load Test Certs

Other optional features include:

Remote Control:                     Wired or Radio Remote Control Belly Box
HPU Oil Tank:                         Painted Steel or SS316
Hydraulics Tubing:                Painted Steel Tube or SS316
Hydraulics Fitting:                 Steel or SS316
HPU Cooling:                          Water or Air Cooled Heat Exchanger
Umbilical Cable Drum:         Flat or Grooved (Lebus)
